CPS provide Specialist Corrosion Control
for Chiller Air Conditioning Systems &
Electrolysis Assessment Reports
Our service includes
 rx 80pc.jpg)

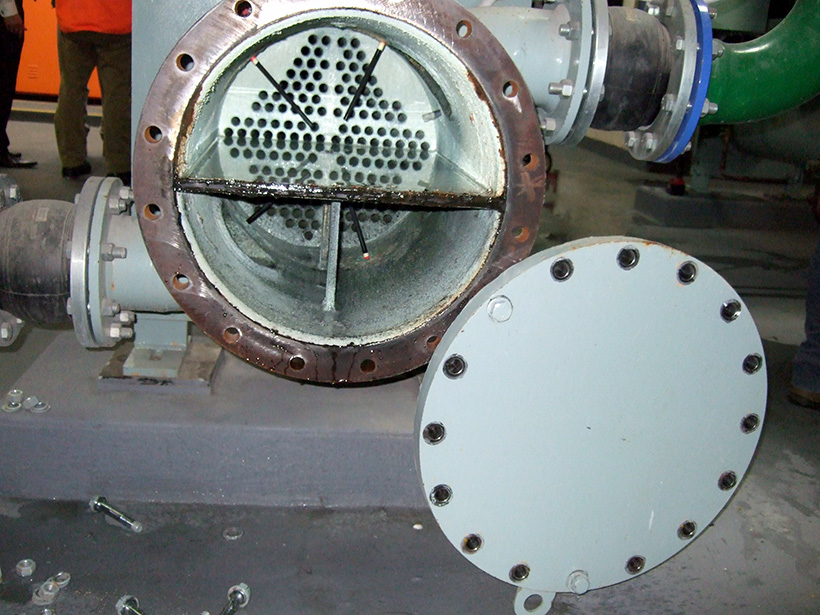

Condenser with cathodic Protection, tube plate Is clean

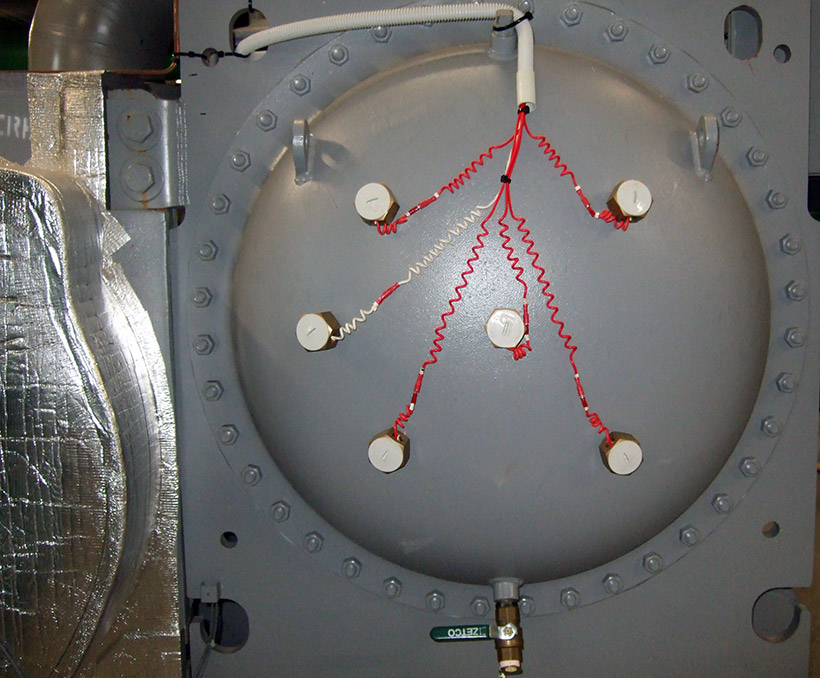

CPS design and install Chiller impressed current cathodic protection systems through Australia.
These systems includes;
Upon completion of each project we offer complete support services including installation, customisation, maintenance, risk mitigation and industry compliance.
Contact us today to learn how CPS can assist with protecting your infrastructure, reviewing your project or business needs, and for any other information. We are here to help.
 OPT Crop 60pc.jpg)

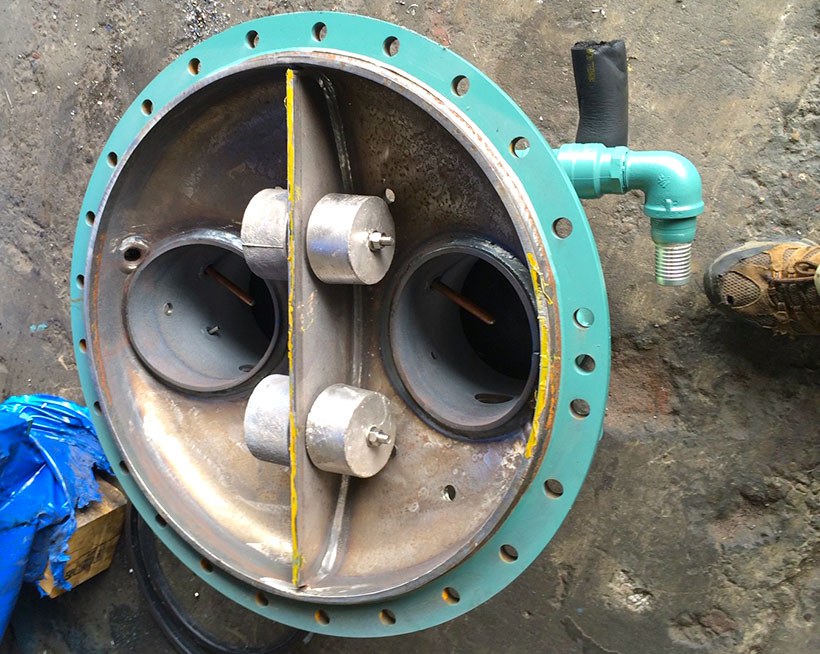

Typical sacrificial anode installation.
Magnesium anodes can be supplied and inserted into the water boxes
These anodes can be purchased from CPS. We also offer an installation service
To control corrosion in Chiller water boxes cathodic protection can be installed. Because of the method by which cathodic protection operates, and provided the system is correctly installed and maintained, no corrosion will occur.
When a cathodic protection system is installed current is discharged from the anode into the water which then flows through the water into the surface of the water box. This current flow is in the opposite direction to that of the above corrosion current and consequently, provided the anode current flows in sufficient quantity the corrosion reactions are completely halted.
There are two principle benefits from the application of cathodic protection to water boxes;
 crop2 60pc.jpg)

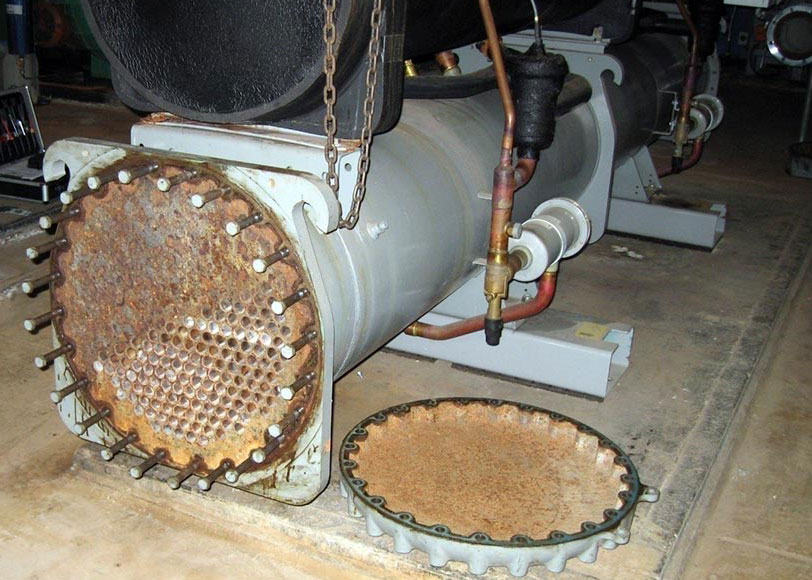

Condenser after 12 months operation with no cathodic protection, tube plates are corroded.
Condenser with cathodic Protection, tube plate Is clean
CPS design and install Chiller impressed current cathodic protection systems through Australia. These systems includes;
Typical sacrificial anode installation.
Magnesium anodes can be supplied and inserted into the water boxes
These anodes can be purchased from CPS. We also offer an installation service
A review of the development plans and possible exposure to stray traction current and develop a report to satisfy DA application Conditions.
The CPS team are with you every step of the way to ensure your infrastructure and projects are protected.
The potential effects of stray electrical currents and electrolysis in the electrified area of the rail network shall be subject to a risk assessment across the full life cycle of the asset.
We offer an array of services from conducting analysis of your infrastructure and projects and sharing opinions and advice, through to active management and monitoring and assessment of your assets through their full life.

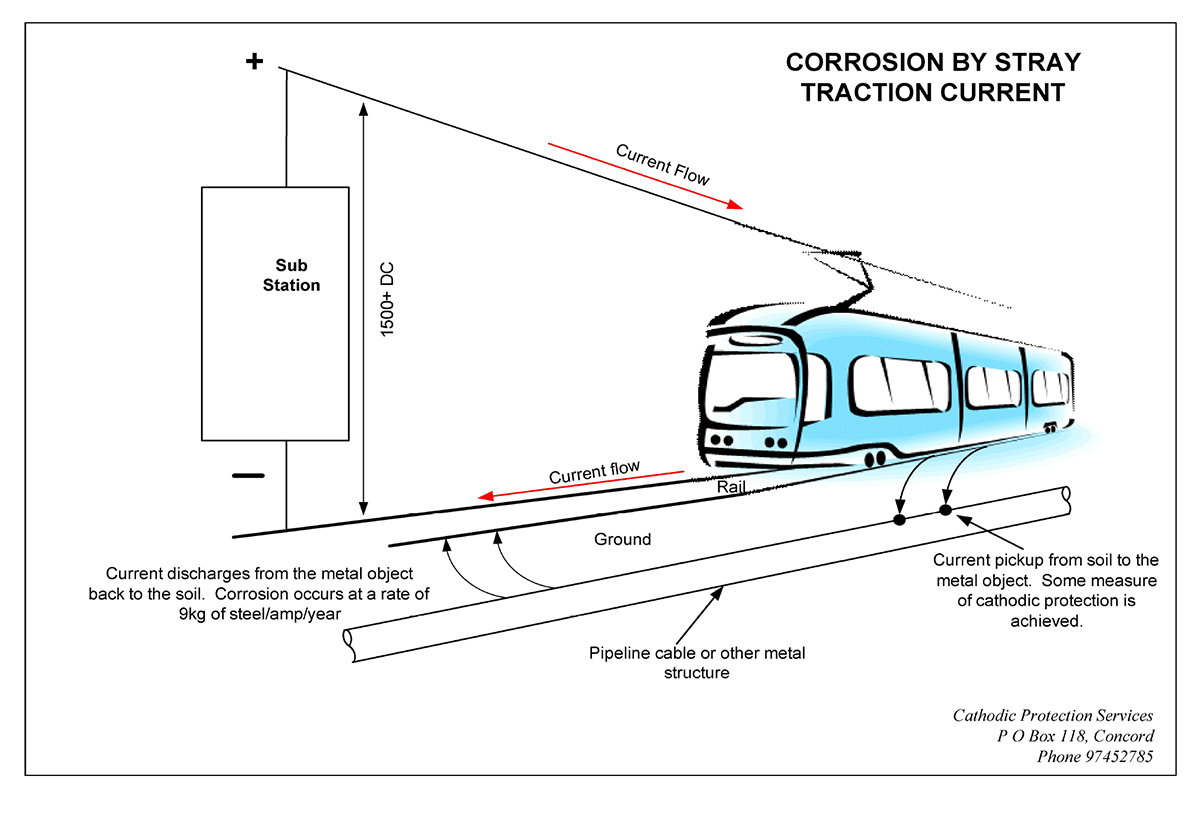

What is Stray Traction Current and Electrolysis.
The railways use DC current to operate their traction system. Some of this Direct current (DC) can flow from rail lines and can cause serious corrosion to underground metallic services and the steel reinforcement of concrete. Stray traction current flowing in the ground can be picked up by the steel reinforcement one side of the development, flow along the reinforcing steel and discharge back to the soil on the opposite side of the building. At the discharge point of the current, corrosion of the reinforcement will occur.
 RX 8bit.png)
A review of the development plans and possible exposure to stray traction current and develop a report to satisfy DA application Conditions.
The CPS team are with you every step of the way to ensure your infrastructure and projects are protected.
Provide an opinion as to whether stray traction current presents a corrosion hazard to the proposed development, and what, if any, remedial or mitigation actions are necessary to comply with DA conditions and thus corrosion hazard to the structure.
Duis consequat non mauris sed commodo. Sed sit amet metus accumsan, elementum sem et, condimentum turpis. Quisque eu dictum dolor, at venenatis arcu.
usce cursus, orci et ornare varius, turpis augue tempus nisi, quis lacinia augue velit sed lorem.
Duis consequat non mauris sed commodo. Sed sit amet metus accumsan, elementum sem et, condimentum turpis. Quisque eu dictum dolor, at venenatis arcu.
usce cursus, orci et ornare varius, turpis augue tempus nisi, quis lacinia augue velit sed lorem.
Cathodic Protection Services carry out the design, installation and maintenance of commercial and industrial cathodic protection systems in chiller condenser water boxes throughout Australia.
Below are a selection of buildings which have had cathodic protection fitted to the air conditioning unit's condenser water boxes include:
| Project | Location | Type |
|---|---|---|
| Parliament House | Canberra | Government |
| Royal Hobart Hospital | Tasmania | Government |
| Victorian Arts Centre | Melbourne | Government |
| John Hunter Hospital | Newcastle | Government |
| Commonwealth Law Courts | Canberra | Government |
| Fiona Stanley Hospital | Perth | Government |
| Project | Location | Type |
|---|---|---|
| Australia Square Office Tower | Sydney | Business |
| Rhodes Corporate Park Buildings | Sydney | Business |
| Chatswood Concourse | Sydney | Business |
| Paramatta Square | Sydney | Business |
| Macquarie Shopping Centre | Sydney | Business |
| Greenhills Shopping Centre | Maitland | Business |
| Crown Casino | Melbourne | Business |
| Southgate Shopping Centre | Melbourne | Business |
| Adelaide Cricket Ground | Adelaide | Business |
| Melbourne Tennis Centre | Victoria | Business |
